Burrs, Files & Hand Pads
Diamond Dental Burs (Calibrated to Neutral Catalogue 300 Standards)
Full-system dental burs — FG (φ1.60 mm) clinical high-speed, HP (φ2.35 mm) lab and RA contra-angle series, with ISO color-band grit coding from extra-coarse black to extra-fine yellow.
← All Products · Burrs, Files & Hand Pads overview
Burrs, Files & Hand Pads

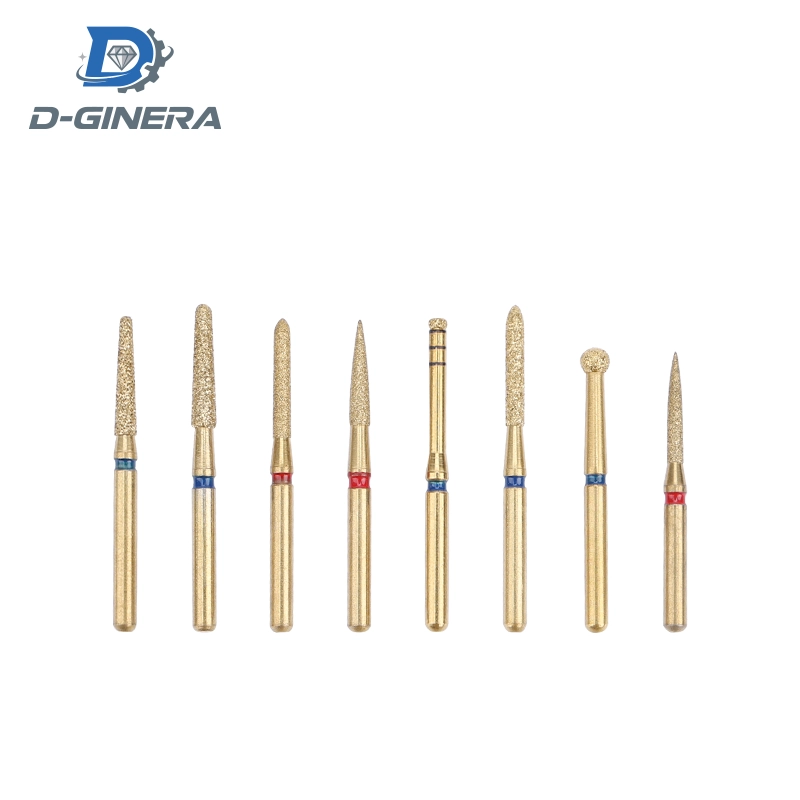

Diamond Dental Burs (Calibrated to Neutral Catalogue 300 Standards)
OEM / ODM available — custom sizes and grit ranges, laser logo and private-label packaging. Manufactured in-house by D-GINERA under ISO9001 quality control.
Product Parameters
Standard model range shown below — custom sizes, grits and private-label packaging are available on request.
| Model Series | Interface / Handpiece | Standard Length & Shank Type | ISO Color Band / Grit Range | Head Shape Series & Specs | Typical Clinical & Lab Use |
|---|---|---|---|---|---|
| DDB-FG-STD | FG High-Speed Handpiece (φ1.60 mm) | Standard 19.0 mm (clinical regular) | Blue band (standard medium 106–125 μm) / Green C (coarse 125–150 μm) | TF (flat taper), TR (round taper), TC (pointed cone), BR (ball), FO (flame), SF/SR (straight), SI/DI (inverted cone), WR (wheel) | Universal clinical high-speed use: tooth preparation, access opening, caries removal, inlay prep and shoulder forming |
| DDB-FG-FINE | FG High-Speed Handpiece (φ1.60 mm) | Standard 19.0 mm | Red F (fine 53–63 μm) / Yellow EF (extra-fine 20–30 μm) | TC-EF, TR-F, TF-F, FO-EF, WR-F, EX-EF (finishing series) | Composite resin & all-ceramic restoration margin micro-adjustment, enamel fine polishing, 135° margin finishing and proximal enamel reduction |
| DDB-FG-LONG | FG Long-Shank Handpiece (φ1.60 mm) | L long shank (21.0–24.0 mm) / LL extra-long (25.0–28.0 mm) | Black B (extra-coarse 150–183 μm) / Green C / Blue medium | BR-L/LL/SL (slim-neck long-reach ball), TC-LL, TR-LL, CF-LL, FO-LL | Deep pulp chamber access, orifice calcification probing and deep caries removal — slim neck keeps the operating field visible |
| DDB-FG-SHORT | FG Short / Ultra-Short Handpiece (φ1.60 mm) | S short (16.5–18.0 mm) / SS ultra-short (14.0–16.0 mm) | Blue medium / Red fine / Yellow extra-fine | CD series (pediatric), TF-S/SS, TR-S/SS, BR-S, CF-SS | Pediatric primary-tooth minimally invasive prep and precision work for patients with limited mouth opening — protects opposing teeth |
| DDB-HP-LAB | HP Lab Straight Handpiece (φ2.35 mm) | Standard total 45.0 mm (3/32″ lab handpiece) | Standard medium (120#–150#) / fine finishing / titanium-coated optional | A-1R/2R, A-K5~K10, B-3R/4R, B-D3/D4, C-5A/6A, D-8A (disc / taper / flame / wheel series) | Dental lab use: zirconia all-ceramic & PFM crown shaping, Co-Cr / pure titanium denture framework and denture-base finishing |
| DDB-RA-SURG | RA Slow-Speed Contra-Angle (φ2.35 mm) | Regular 22.0–26.0 mm / implant extended 26.0–34.0 mm (grooved) | Blue medium / Green coarse / Black extra-coarse | Regular bur heads (BR/FO/TC/TR) & sinus-lift implant burs (2601-2606 / 3401-3406 / BR-20, φ1.8–4.2 mm) | Sinus floor elevation window osteotomy & bone trimming, plus slow-speed low-vibration caries removal |
| DDB-KIT-10P | FG Clinical Specialty Kit (10 pcs) | 19.0–25.0 mm clinical combo kit | Multi-grit combo: Black B / Green C / Blue / Red F / Yellow EF | #1 standard prep / #2 all-ceramic PFM / #3 inlay / #4 anterior veneer / #6 crown-breaking ball / #10 veneer / #12 pediatric / #15 proximal reduction kit | Standardized clinic specialty kit — autoclavable aluminum / blister box, clinic-name laser engraving |
| DDB-CUSTOM | Medical Device OEM / ODM | FG 1.60 / HP 2.35 / RA 2.35 full shank range | Extra-coarse (black B 183 μm) to extra-fine (yellow EF 20 μm) full coverage | Custom taper, working-end length and special blade heads per ISO number or sample | 5/10-PC blister card, sterilization box engraving, shank color-band painting and global medical brand OEM |
Engineering Custom Direct Line
Non-standard sizes, custom patterns, laser logo & private-label packaging — send your drawings, get a quote within 24 hours.
